TPMS AT ALLIGATOR

The ALLIGATOR product range covers all requirements in the field of TPMS. From sensors to the appropriate programming device, everything is provided. Our sens.it® product line offers the right solution for every area of application: whether workshop operator or complete wheel manufacturer.

ALLIGATOR Universal Sensors sens.it® RS

With the freely programmable universal sensors from ALLIGATOR sens.it® RS, you are equipped for every situation in your workshop: The universal sensors are not pre-programmed, so they can be individually adapted to the respective vehicle model. This reduces the variety of sensors required, which a workshop must have in stock, and simplifies the work process. Although vehicle-specific programming does take some time, universal sensors can be updated again and again and therefore do not become obsolete.

All the advantages of the ALLIGATOR sens.it® RS universal sensors at a glance:

  • Very high vehicle coverage
  • Correspond to OE sensors in quality and functionality
  • Perfect sensor fit due to flexible adjustment
  • Number of stored parts and associated costs can be reduced
  • Risk of installing the wrong sensor is reduced
  • Fast and easy workflow
  • Loss of sales due to non-stocked built-in parts is avoided
  • Sensors can be programmed both before and after mounting the tires
[Translate to English US:] [Translate to English GB:] Universalsensor sens.it® RS3

With ball joint attachment

The sens.it® RS3 sensor corresponds to the original tire pressure sensors in terms of functionality and quality. The aluminum valve used in the original equipment and the currently smallest tire pressure sensor for metal valves are connected to each other by means of the ALLIGATOR patented ball joint. The ball joint makes it possible to mount the sensor flexibly on most steel and aluminum rims.

Technical data - Universal sensor sens.it® RS3

Part No.:                                      590883
Sensor Type:                                sens.it® RS3
Mounting:                                    Ball joint
Frequency:                                   433 MHz
Color marking:                            blue seal
Sensor weight:                            18 g
Adjustable angle:                       12° to 40°
Nut tightening torque:              3,3 Nm / 29 inch lbs
Screw tightening torque:          3,3 Nm / 29 inch lbs

The aluminum valve is made of a high-quality aluminum alloy and is protected against corrosion by an additional anodized coating.

Technical data - Screw valve

Valve type:                                   Screw valve
Mounting:                                     Ball joint
Length:                                         43 mm
For valve hole:                             Ø 11,3 + 0,4 mm
Finish:                                           Anodized aluminum in silver

Technical data - Universal sensor sens.it® RS3

Part No.:                                       590885
Sensor Type:                                 sens.it® RS3
Mounting:                                     Ball joint
Frequency:                                    433 MHz
Color marking:                              blue seal
Sensor weight:                             18 g
Adjustable angle:                        12° to 40°
Nut tightening torque:               3,3 Nm / 29 inch lbs
Screw tightening torque:           3,3 Nm / 29 inch lbs

The aluminum valve is made of a high-quality aluminum alloy and is protected against corrosion by an additional anodized coating.

Technical data - Screw valve

Ventil type:                                 Screw valve
Mounting:                                   Ball joint
Length:                                        43 mm
For valve hole:                            Ø 11,3 + 0,4 mm
Finish:                                          Anodized aluminum in black

[Translate to English US:] [Translate to English GB:] Universalsensor sens.it® RS4

The snap-in version of the sens.it® sensor RS4 is equipped with the clip-pin functionality patented by ALLIGATOR. The clip-pin enables a very simple and quick assembly or disassembly of the valve and replaces a cumbersome screw for the connection to the sensor.

The sens.it® RS4 universal sensor can be used...

  • ...for tires up to speed index H.
  • ...for wheels where the valve deflection can be limited to a maximum angle of 25°.

The sen.it® Snap-In valve is mounted into the rim like a conventional rubber valve or removed accordingly.

The following recommendations must be observed:

Snap-In valves for tire pressure sensors are exposed to significantly higher loads than standard valves. Therefore it is necessary to supplement TPMS Snap-In valves basically at every tire change. The TPMS Snap-In Valve for the sens.it® universal sensor RS4 is limited to speeds below 130.5 mph and is therefore recommended exclusively for the replacement of TPMS Snap-In valve solutions already installed in the factory. In any case, when using the sens.it® Snap-In Valve, it must be ensured beforehand that the maximum design speed specified for the vehicle does not exceed 130.5 mph.

It must be ensured that the tire inflation pressure does not exceed 65 psi. In case of doubt, it is recommended to use the universal sensor sens.it® RS4 with Snap-In valve.



Technical data - universal sensor sens.it® RS4

Part No.:                                  590881
Sensor Type:                            sens.it® RS4
Mounting:                                Clip-Pin
Frequency:                               433 MHz
Color marking:                        blue seal
Sensor weight:                        16 g
ETRTO:                                     No. V2.03.13

Technical data - screw valve
Valve type:                               Snap-In
Mounting:                                Clip-Pin
Length:                                     TR413
For valve hole:                         Ø 11,3 + 0,4 mm
Valve angle:                             20°
Max. top speed:                      130.5 mph
Tire inflation pressure:           up to 65 psi

With ball joint attachment

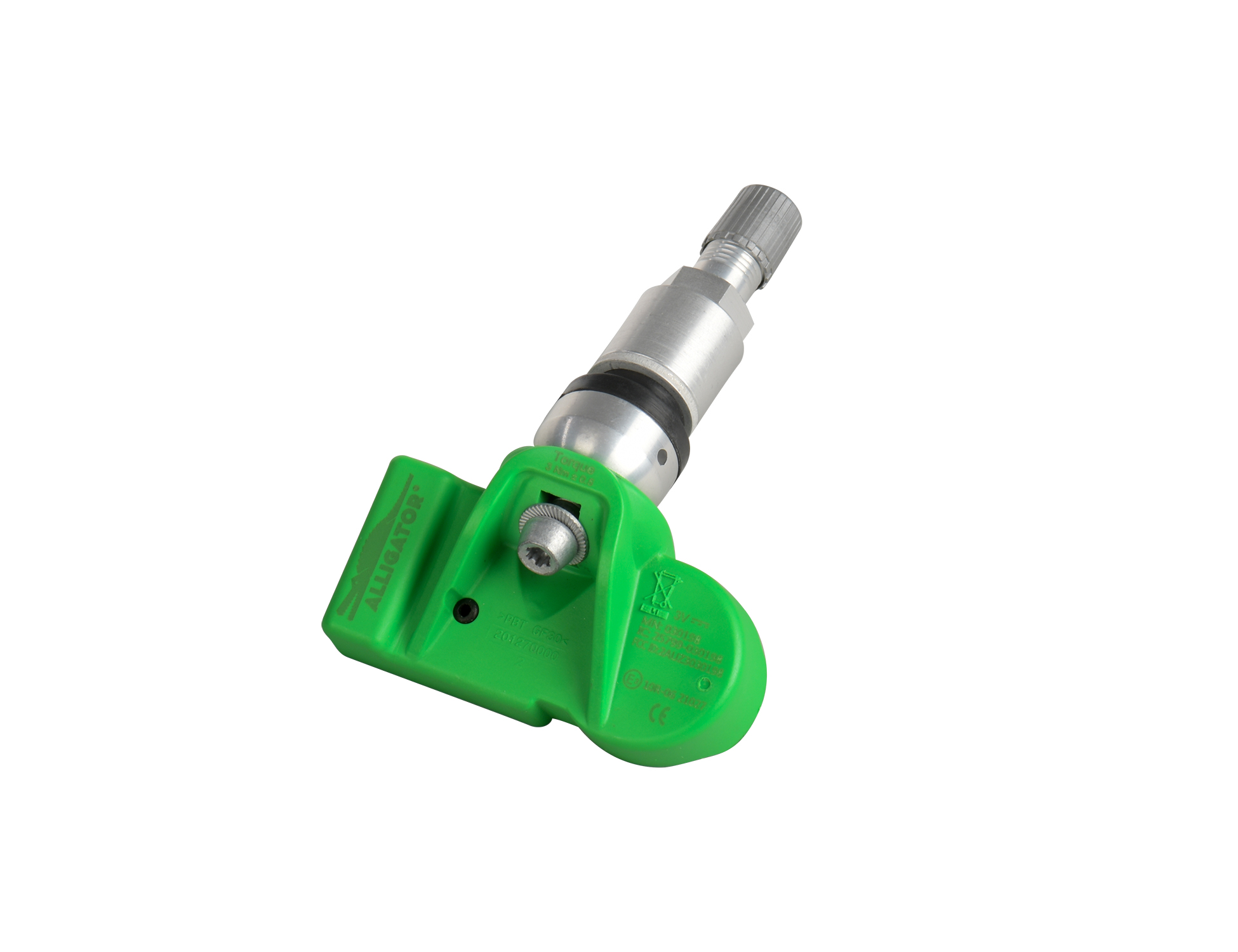

The sens.it® RS1 sensor corresponds to the original tire pressure sensors in terms of functionality and quality. The aluminum valve used in the original equipment and the currently smallest tire pressure sensor for metal valves are connected to each other by means of the ALLIGATOR patented ball joint. The ball joint makes it possible to mount the sensor flexibly on most steel and aluminum rims.

Technical data - Universal sensor sens.it® RS1

Part No.:                                         590882
Sensor Type:                                  sens.it® RS1
Mounting:                                      Ball joint
Frequency:                                     315 MHz
Color marking:                              green seal
Sensor weight:                              18 g
Adjustable angle:                         12° to 40°
Nut tightening torque:                3,3 Nm / 29 inch lbs
Screw tightening torque:            3,3 Nm / 29 inch lbs

The aluminum valve is made of a high-quality aluminum alloy and is protected against corrosion by an additional anodized coating.

Technical data - Screw valve

Ventil type:                                 Screw valve
Mounting:                                   Ball joint
Length:                                        43 mm
For valve hole:                            Ø 11,3 + 0,4 mm
Finish:                                          Anodized aluminum in silver

Technical data - Universal sensor sens.it® RS1

Part No.:                                      590884
Sensor Type:                                sens.it® RS1
Mounting:                                    Ball joint
Frequency:                                   315 MHz
Color marking:                            green seal
Sensor weight:                             18 g
Adjustable angle:                        12° to 40°
Nut tightening torque:               3,3 Nm / 29 inch lbs
Screw tightening torque:           3,3 Nm / 29 inch lbs

The aluminum valve is made of a high-quality aluminum alloy and is protected against corrosion by an additional anodized coating.

Technical data - Screw valve

Ventil type:                                 Screw valve
Mounting:                                   Ball joint
Length:                                        43 mm
For valve hole:                            Ø 11,3 + 0,4 mm
Finish:                                          Anodized aluminum in black

The snap-in version of the sens.it® sensor RS2 is equipped with the clip-pin functionality patented by ALLIGATOR. The clip-pin enables a very simple and quick assembly or disassembly of the valve and replaces a cumbersome screw for the connection to the sensor.

The sens.it® RS2 universal sensor can be used...

  • ...for tires up to speed index H.
  • ...for wheels where the valve deflection can be limited to a maximum angle of 25°.

The sens.it® Snap-In valve is mounted into the rim like a conventional rubber valve or removed accordingly.

The following recommendations must be observed:

Snap-In valves for tire pressure sensors are exposed to significantly higher loads than standard valves. Therefore it is necessary to supplement TPMS Snap-In valves basically at every tire change. The TPMS Snap-In Valve for the sens.it® universal sensor RS2 is limited to speeds below 130.5 mph and is therefore recommended exclusively for the replacement of TPMS Snap-In valve solutions already installed in the factory. In any case, when using the sens.it® Snap-In Valve, it must be ensured beforehand that the maximum design speed specified for the vehicle does not exceed 130.5 mph.

It must be ensured that the tire inflation pressure does not exceed 65 psi. In case of doubt, it is recommended to use the universal sensor sens.it® RS2 with Snap-In valve.

Technical data - universal sensor sens.it® RS2

Part No.:                                  590880
Sensor Type:                            sens.it® RS2
Mounting:                                Clip-Pin
Frequency:                              315 MHz
Color marking:                        green seal
Sensor weight:                        16 g
ETRTO:                                     No. V2.03.13

Technical data - screw valve

Valve type:                                Snap-In
Mounting:                                 Clip-Pin
Length:                                     TR413
For valve hole:                          Ø 11,3 + 0,4 mm
Valve angle:                              20°
Max. top speed:                      130.5 mph
Tire inflation pressure:            up to 65 psi

     view products

Are you interested in our products, would you like further information or do you have questions in the field of sensor technology? Simply contact us!

ALLIGATOR Programming devices

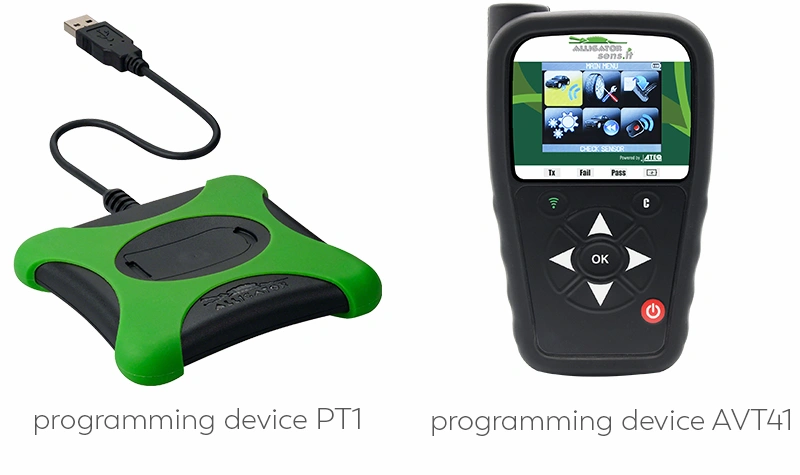

Basically, two variants are available for the programming of sens.it® sensors:

The ALLIGATOR Programming Tool PT1 has been specially developed to program sens.it® sensors exclusively. It is not possible to read out already programmed sensors. The device is therefore an ideal and cost-effective addition to wireless TPMS handheld devices.

The ALLIGATOR AVT41 is an ideal supplement to the ALLIGATOR programming device PT1. It supports the work flow in the workshop, for example, by being able to check the function, sensor ID, tire pressure and temperature of all TPMS sensors installed in the vehicle when the vehicle is accepted.

In our download area you will find the appropriate software for your programming device and the always up-to-date sens.it® ONE and sens.it® RS cover lists.

     view products

In the download area you will find the appropriate software for your programming device and the current cover lists sens.it® ONE and sens.it® RS.
